Lesson 16 of 23 · Transformer block

Normalize across features, one token at a time.

Your win: calculate a normalized token vector and distinguish LayerNorm, RMSNorm, Pre-LN, and Post-LN.

14 minutesNeeds: mean and square rootOutcome: calculate \(\operatorname{Norm}(x)\)

Mission link: the depicted block is pre-norm: it normalizes the current hidden state before attention and before the feed-forward sublayer.

LayerNorm

For one token vector \(\mathbf x\in\mathbb R^d\), calculate statistics across its \(d\) features:

\[ \mu=\frac1d\sum_{r=1}^d x_r,\qquad \sigma^2=\frac1d\sum_{r=1}^d(x_r-\mu)^2, \qquad \operatorname{LN}(\mathbf x)=\gamma\odot\frac{\mathbf x-\mu}{\sqrt{\sigma^2+\varepsilon}}+\beta. \]

Numbers substituted: \(\mathbf x=(1,2,3)\)

\[ \mu=2,\qquad \sigma^2=\frac{(1-2)^2+(2-2)^2+(3-2)^2}{3}=\frac23. \]

Ignoring tiny \(\varepsilon\) and taking \(\gamma=1,\beta=0\):

\[ \operatorname{LN}(1,2,3) =\frac{(-1,0,1)}{\sqrt{2/3}} \approx(-1.225,0,1.225). \]

RMSNorm: scale without centering

\[ \operatorname{RMS}(\mathbf x)=\sqrt{\frac1d\sum_{r=1}^d x_r^2+\varepsilon}, \qquad \operatorname{RMSNorm}(\mathbf x)=\gamma\odot\frac{\mathbf x}{\operatorname{RMS}(\mathbf x)}. \]

For \((1,2,3)\), \(\operatorname{RMS}=\sqrt{14/3}\approx2.160\), so the unscaled output is approximately \((0.463,0.926,1.389)\). Unlike LayerNorm, its mean is not forced to zero.

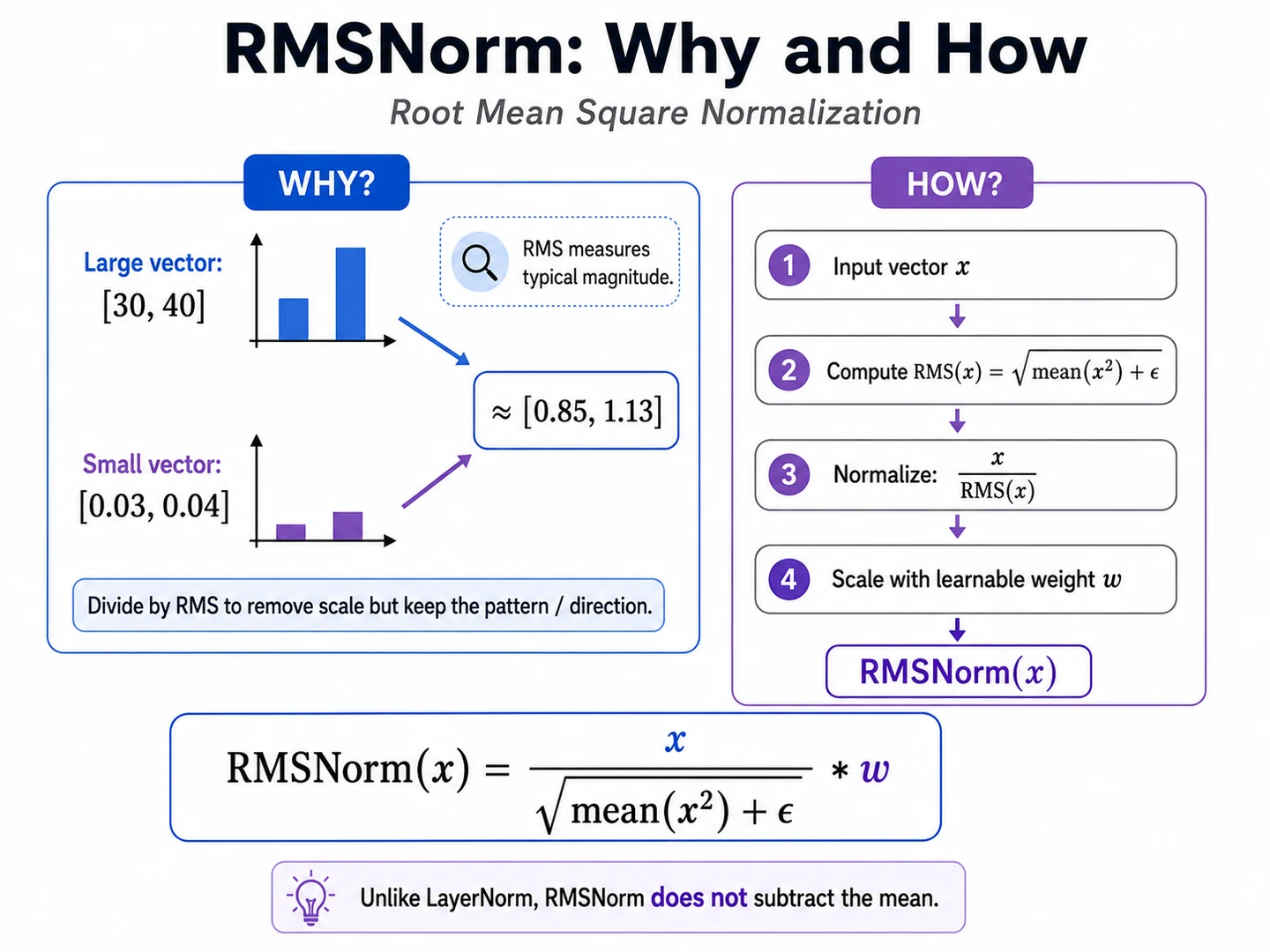

RMSNorm rescales each token across its feature axis. The batch and sequence axes stay separate, and the output keeps the same \([B,T,D]\) shape.

Placement is a separate choice

Pre-LN, as depicted

\(Y=X+F(\operatorname{Norm}(X))\)

Normalize before the sublayer.

Original Post-LN

\(Y=\operatorname{Norm}(X+F(X))\)

Normalize after residual addition.

LayerNorm vs RMSNorm asks what computation? Pre-LN vs Post-LN asks where is it placed?

Code checkpoint · RMSNorm over the last axis

MiniMind uses RMSNorm. Notice that mean(dim=-1) reduces only the feature axis, independently for every batch item and token.

Show the RMSNorm module

class RMSNorm(nn.Module):
    def __init__(self, width, eps=1e-6):
        super().__init__()
        self.eps = eps
        self.weight = nn.Parameter(torch.ones(width))

    def forward(self, x):
        rms = torch.rsqrt(
            x.float().pow(2).mean(dim=-1, keepdim=True) + self.eps
        )
        return (x.float() * rms * self.weight).to(dtype=x.dtype)

Trace it: For x.shape == [2, 3, 8], what is the shape of rms after keepdim=True?

Engineering bridge · two norms, one block width

The full MiniMind block owns an input_layernorm before attention and a post_attention_layernorm before the feed-forward route. Both compute their statistics in float32, then cast the normalized result back to the incoming dtype for the residual path.

Show the block's normalization boundaries

residual = hidden_states
hidden_states, present = self.self_attn(
    self.input_layernorm(hidden_states), position_embeddings,
    past_key_value, use_cache, attention_mask
)
hidden_states = hidden_states + residual
hidden_states = hidden_states + self.mlp(
    self.post_attention_layernorm(hidden_states)
)

Shape check: each norm maps [B, T, D] -> [B, T, D]; the two residual additions therefore remain elementwise valid.

Retrieval check

Answer once before reopening the code; use the feedback to correct your explanation.

Which axis supplies the mean and variance for one token?

STAGE 4 · PROVE IT

Practice studio · recall → build → verify

Compute the mean and variance of \((2,2,4,4)\).
Normalize \((2,2,4,4)\) with LayerNorm, ignoring \(\varepsilon\), \(\gamma=1\), and \(\beta=0\).
Compute the RMS of \((3,4)\).
State whether RMSNorm subtracts the mean.
Rewrite “normalize, attend, add the original” as one Pre-LN formula.
Does normalization change the tensor shape? Explain.

BUILD CHALLENGE · RUN IT LOCALLY

Engineering challenge · implement RMSNorm

Write an RMSNorm forward pass that reduces only the last axis, keeps dimensions for broadcasting, computes the statistic in float32, then returns the input dtype. Verify `[2, 3, 8] → [2, 3, 8]`.

Standard answer · compare after your attempt

def rms_norm(x, weight, eps=1e-6):
    rms = x.float().pow(2).mean(dim=-1, keepdim=True).add(eps).rsqrt()
    return (x.float() * rms * weight).to(x.dtype)

y = rms_norm(torch.randn(2, 3, 8), torch.ones(8))
assert y.shape == (2, 3, 8)

`keepdim=True` preserves `[B, T, 1]`, so the scale broadcasts across features without changing either outer axis.

Check solutions

\(\mu=3,\sigma^2=1\).
\((-1,-1,1,1)\).
\(\sqrt{(9+16)/2}=\sqrt{12.5}\approx3.536\).
No.
\(Y=X+\operatorname{Attention}(\operatorname{Norm}(X))\).
No; it transforms feature values but preserves every axis length.

Primary sources: Ba et al., Layer Normalization; Zhang and Sennrich, RMSNorm; Xiong et al., Pre-LN vs Post-LN.
