A Short Course for Modern Large Language ModelsGlossary

Lesson 13 of 23 · LLM preliminaries

Predict one token, append it, repeat.

Your win: trace the autoregressive generation loop and explain how temperature, top-k, and top-p alter the next-token choice.

18 minutesNeeds: logits and softmaxOutcome: read a sampling loop
Module bridge: training predicts every aligned next token in parallel; generation repeatedly uses the final visible position to choose one new token.

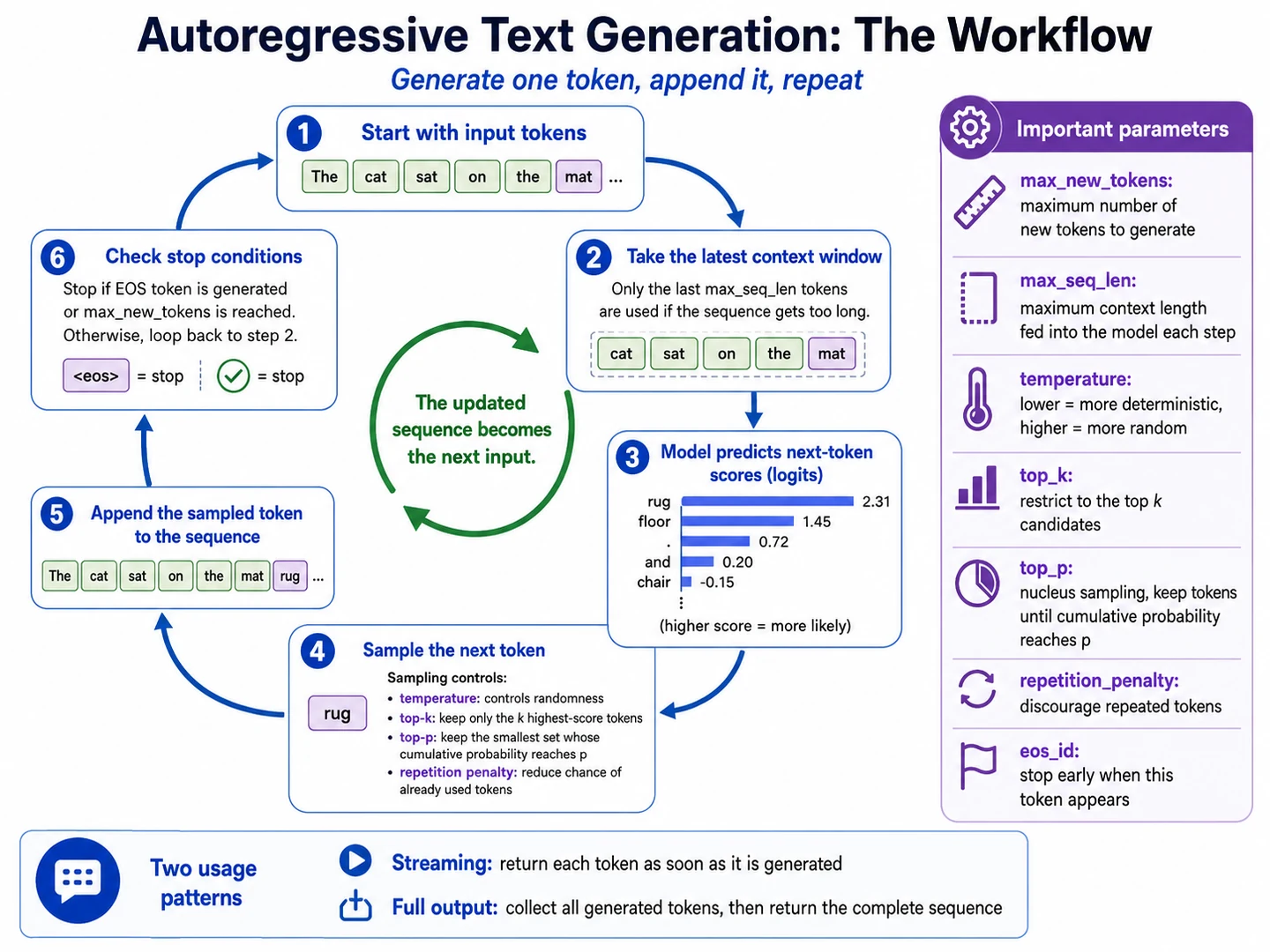

Circular six-step workflow for autoregressive generation: choose context, compute logits, sample, append, and stop or repeat
The updated sequence becomes the next input. Generation stops at an end token or a configured length limit.

Only the final logits choose the new token

For model output \(L\in\mathbb R^{B\times T\times V}\), one sequence uses

\[\mathbf z=L[0,T-1,:]\in\mathbb R^V.\]

The earlier logits describe earlier next-token decisions. The final row scores the token that should follow the complete visible context.

Temperature reshapes, but does not reorder, logits

\[p_i=\frac{e^{z_i/\tau}}{\sum_j e^{z_j/\tau}}.\]

Lower \(\tau\) sharpens differences and makes the highest-logit tokens dominate. Higher \(\tau\) flattens the distribution and increases randomness.

Change temperature for fixed logits \((2.1,1.3,0.2,-0.4,-1.2)\)

\(\tau=\)1.0
Lower = sharper; higher = flatter

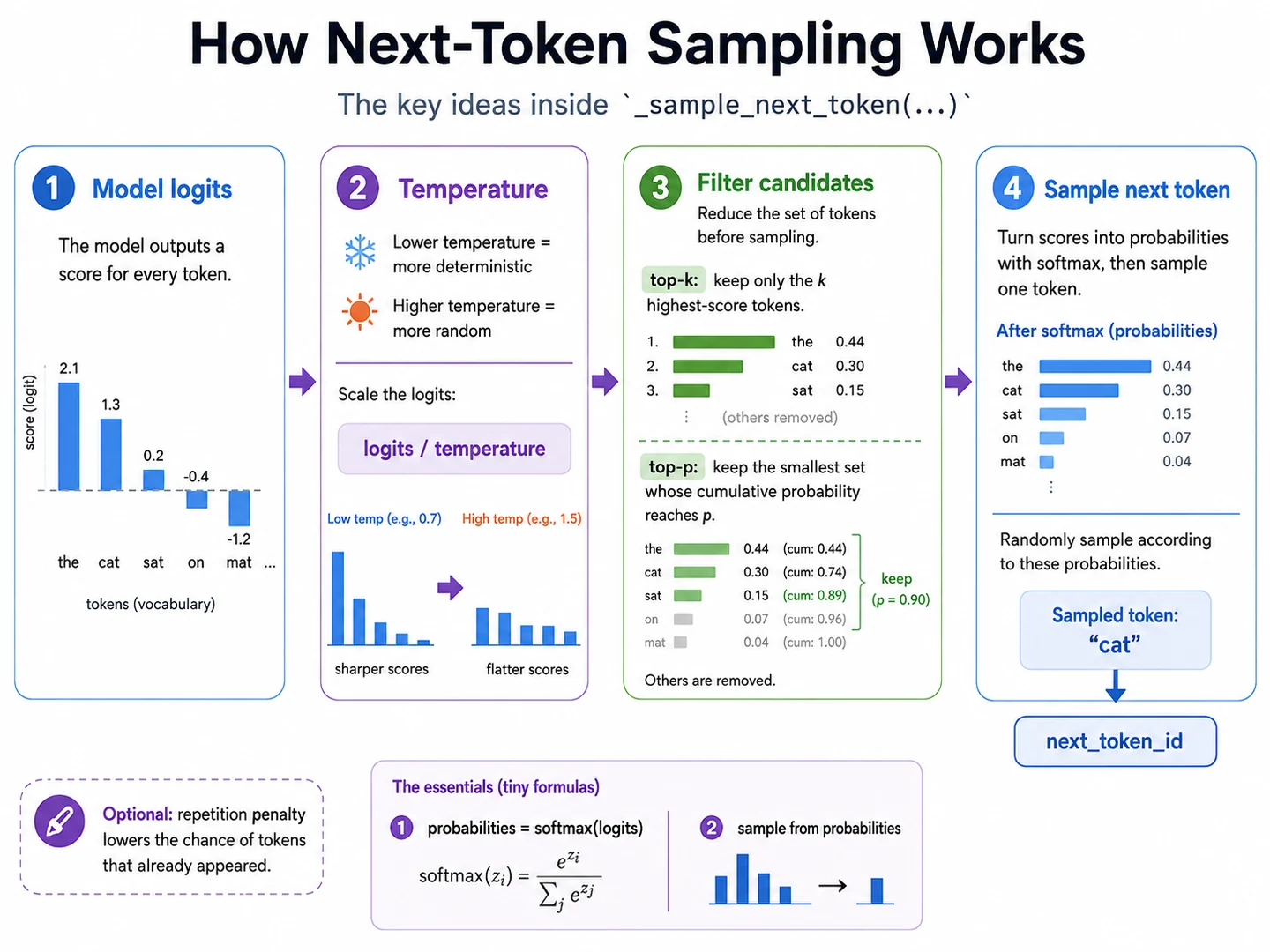

Four-stage next-token sampling diagram covering logits, temperature, top-k and top-p filtering, softmax, and random sampling
Filtering restricts candidates before sampling. Top-k keeps a fixed count; top-p keeps the smallest high-probability set whose cumulative mass reaches \(p\).
Greedy is not sampling: choosing \(\arg\max_i z_i\) is deterministic. Sampling draws according to a probability distribution and can produce different continuations from the same prompt.

Code checkpoint · one temperature and top-k decision

Show a compact sampling function
def sample_next_token(logits, temperature=1.0, top_k=None):
    scores = logits / temperature

    if top_k is not None:
        cutoff = torch.topk(scores, top_k).values[..., -1, None]
        scores = scores.masked_fill(scores < cutoff, float("-inf"))

    probabilities = torch.softmax(scores, dim=-1)
    return torch.multinomial(probabilities, num_samples=1)

# logits is the final-position vector: model(input_ids)[:, -1, :]

Trace it: Why must filtering happen before torch.multinomial?

Retrieval check

What normally happens as temperature moves from \(1.0\) to \(0.5\)?

Practice before moving on

  1. For logits with shape \(2\times6\times1000\), what slice supplies one next-token decision for each batch item?
  2. Scale logits \((2,1)\) using temperatures \(0.5\) and \(2.0\).
  3. With probabilities \((0.50,0.25,0.15,0.10)\), which tokens remain under top-k with \(k=2\)?
  4. For the same probabilities, what is the smallest top-p set for \(p=0.80\)?
  5. Name two stopping conditions for generation.
  6. Explain why appending a sampled token changes the next forward pass.
Check solutions
  1. logits[:, -1, :], with shape \(2\times1000\).
  2. At \(0.5\): \((4,2)\); at \(2.0\): \((1,0.5)\).
  3. The first two tokens.
  4. The first three tokens, because \(0.50+0.25+0.15=0.90\ge0.80\), while the first two total only \(0.75\).
  5. An EOS token or a maximum number of new tokens.
  6. The new ID joins the context, so later hidden states and logits are conditioned on it.

Source: Holtzman et al., The Curious Case of Neural Text Degeneration.
